Inverse design of a Y-branch using lumopt2

An example of a parametric optimization for a Y-branch using lumopt2. This example demonstrates the use of a closed curve parametrization with a custom function to enforce symmetry. After the optimization, the final design is exported as a GDSII file.

Prerequisites:

• Valid Lumerical FDTD license with Lumerical 2026 R1.2 release or newer.

Imports

from pathlib import Path

from matplotlib import pyplot as plt

plt.ion()
import numpy as np

import ansys.lumerical.core as lumapi
import ansys.lumerical.core.lumopt2 as lmpt

Material, simulation, geometry

Material and waveguide parameters

n_wg = np.sqrt(12.25)  # Silicon refractive index
n_bg = np.sqrt(2.25)  # Silicon oxide background
wg_width = 0.5e-6  # Waveguide width (500 nm)
wg_height = 0.22e-6  # Waveguide height (220 nm)

Wavelength

Set wavelength from 1300-1800nm

wavelengths = np.linspace(1300e-9, 1800e-9, 11)

Design region parameters

splitter_span_x = 3.5e-6  # Length of the Y-branch splitter
wg_y_offset = 1.0e-6  # Output arm offset in y
port_width = 3 * wg_width  # Port width to capture the mode
port_height = 2e-6  # Port height in z
fdtd_span_x = splitter_span_x + 0.8e-6
fdtd_span_y = 2 * wg_y_offset + 3 * wg_width
fdtd_span_z = wg_height + 2e-6
mesh_size = 25e-9
offset = 4 * mesh_size  # Buffer between optimization region and FDTD edge

Base simulation

def generate_base_sim(fdtd):
    """Build the FDTD region, the input/output ports, and the field monitor."""
    fdtd.addfdtd(
        {
            "x": 0,
            "x span": fdtd_span_x,
            "y": 0,
            "y span": fdtd_span_y,
            "z": 0,
            "z span": fdtd_span_z,
            "index": n_bg,
            "mesh accuracy": 3,
            "mesh refinement": "precise volume average",
        }
    )
    fdtd.addport({"name": "port_in"})
    fdtd.set("injection axis", "x")
    fdtd.set(
        {
            "direction": "Forward",
            "x": -fdtd_span_x / 2 + 2e-7,
            "y": 0,
            "y span": port_width,
            "z span": port_height,
            "frequency dependent profile": False,
        }
    )

    fdtd.addport({"name": "port_out1"})
    fdtd.set("injection axis", "x")
    fdtd.set(
        {
            "direction": "Backward",
            "x": fdtd_span_x / 2 - 2e-7,
            "y": wg_y_offset,
            "y span": port_width,
            "z span": port_height,
            "frequency dependent profile": False,
        }
    )

    # 2D field monitor through the device midplane (used by GraphicalVisualizer).
    # Override the global monitor settings so this monitor only records the
    # mid-O-band wavelength: that's all we need for live visualization and it
    # keeps the monitor lightweight regardless of the optimization sweep.
    center_wavelength = float(wavelengths[len(wavelengths) // 2])
    fdtd.adddftmonitor(
        {
            "name": "field_monitor",
            "x": 0,
            "x span": fdtd_span_x,
            "y": 0,
            "y span": fdtd_span_y,
            "z": 0,
            "override global monitor settings": True,
            "use source limits": False,
            "frequency points": 1,
            "wavelength center": center_wavelength,
            "wavelength span": 0,
        }
    )

    fdtd.setglobalsource("wavelength start", wavelengths[0])
    fdtd.setglobalsource("wavelength stop", wavelengths[-1])
    fdtd.setglobalmonitor("frequency points", len(wavelengths))
    fdtd.setglobalmonitor("use wavelength spacing", True)
    fdtd.setnamed("FDTD::ports", "override global monitor settings", False)

Optimization region

The optimization region is kept inside the FDTD bounds with a small buffer

optimization_region = lmpt.Box(
    x_min=-splitter_span_x / 2,
    x_max=splitter_span_x / 2,
    y_min=-(wg_y_offset + wg_width),
    y_max=wg_y_offset + wg_width,
    z_min=-wg_height / 2.0,
    z_max=wg_height / 2.0,
    mesh_size=mesh_size,
)

Closed curve geometry

Closed-curve definition of the silicon Y-splitter. Walking the boundary counter-clockwise from the top-left, the four cubic segments (2, 6, 7, 11) form the parametric splitter region; everything else is fixed waveguide wall. Segments 2 and 11 control the outer walls of the upper / lower output arms (mirror partners across y=0); segments 6 and 7 control the inner V-shape between the two output arms (also mirror partners).

path = [
    lmpt.Segment([-fdtd_span_x / 2 - 200e-9, wg_width / 2], "linear"),  # Segment 1
    lmpt.Segment([-splitter_span_x / 2, wg_width / 2], "cubic"),  # Segment 2  (upper outer wall, parametric)
    lmpt.Segment([splitter_span_x / 2, wg_y_offset + wg_width / 2], "linear"),  # Segment 3
    lmpt.Segment([fdtd_span_x / 2 + 200e-9, wg_y_offset + wg_width / 2], "linear"),  # Segment 4
    lmpt.Segment([fdtd_span_x / 2 + 200e-9, wg_y_offset - wg_width / 2], "linear"),  # Segment 5
    lmpt.Segment([splitter_span_x / 2, wg_y_offset - wg_width / 2], "cubic"),  # Segment 6  (upper inner wall, parametric)
    lmpt.Segment([-splitter_span_x / 2 + 1500e-9, 0], "cubic"),  # Segment 7  (lower inner wall, parametric)
    lmpt.Segment([splitter_span_x / 2, -(wg_y_offset - wg_width / 2)], "linear"),  # Segment 8
    lmpt.Segment([fdtd_span_x / 2 + 200e-9, -(wg_y_offset - wg_width / 2)], "linear"),  # Segment 9
    lmpt.Segment([fdtd_span_x / 2 + 200e-9, -(wg_y_offset + wg_width / 2)], "linear"),  # Segment 10
    lmpt.Segment([splitter_span_x / 2, -(wg_y_offset + wg_width / 2)], "cubic"),  # Segment 11 (lower outer wall, parametric)
    lmpt.Segment([-splitter_span_x / 2, -wg_width / 2], "linear"),  # Segment 12
    lmpt.Segment([-fdtd_span_x / 2 - 200e-9, -wg_width / 2], "linear"),  # Segment 13 (closes loop)
]

y_branch_curve = lmpt.ClosedCurve(path, z_min=-wg_height / 2, z_max=wg_height / 2, index=n_wg, optimization_region=optimization_region)

Check the geometry of the curve. The code will continue to run after this if the whole script is ran.

y_branch_curve.plot()
plt.pause(0.1)

Parametrization

Parametrize the y-branch geometry and enforce mirror symmetry across y=0.

Number of control vertices added on each parametric segment. Increasing these values gives the optimizer more shape freedom at the cost of more adjoint gradient evaluations per iteration.

num_params_outer = 6
num_params_inner = 5
num_params = num_params_outer + num_params_inner + 1  # +1 for the V-tip x-offset

Subdivide the four cubic boundary segments. The mirror partners (11 mirrors 2, 7 mirrors 6) get the same number of vertices so the parametrization function below can pair them one-to-one.

split_result = y_branch_curve.split_segments(
    [
        lmpt.EqualSplit(segment_index=2, num_added_vertices=num_params_outer),  # Upper outer wall
        lmpt.EqualSplit(segment_index=6, num_added_vertices=num_params_inner),  # Upper inner wall
        lmpt.EqualSplit(segment_index=7, num_added_vertices=num_params_inner),  # Lower inner wall (mirror of 6)
        lmpt.EqualSplit(segment_index=11, num_added_vertices=num_params_outer),  # Lower outer wall (mirror of 2)
    ]
)
seg2_vertices = split_result[2]
seg6_vertices = split_result[6]
seg7_vertices = split_result[7]
seg11_vertices = split_result[11]
center_vertex_idx = seg7_vertices[0] - 1  # V-tip vertex sits between segments 6 and 7

Defining the symmetric parametrization

def symmetric_parametrization(params):
    """Enforce symmetric vertex displacements by mapping ``params`` to per-vertex deltas.

    Enforces symmetric displacements in vertices by mapping vertex displacements
    to the same parameter values in the ``params`` array. Uses the params
    array as well as the vertex indices from earlier.

    Parameters
    ----------
    params : array-like
        Length ``num_params`` array.  Layout:

        * ``params[0:num_params_outer]`` displace the outer-wall vertices
          on segment 2 in +y; the mirror partners on segment 11 move in -y.
        * ``params[num_params_outer:num_params_outer + num_params_inner]``
          displace the inner-wall vertices on segment 6 in +y; the mirror
          partners on segment 7 move in -y.
        * ``params[-1]`` shifts the V-tip vertex in x.

    Returns
    -------
    list of ParamVertex
        Per-vertex displacement spec for every control vertex created by
        ``split_segments`` above.
    """
    deltas = []

    # Upper half
    for i, idx in enumerate(seg2_vertices):
        # Outer wall
        deltas.append(lmpt.ParamVertex(idx=idx, delta_y=params[i]))
    for i, idx in enumerate(seg6_vertices):
        # Inner wall, starting at the end of the outer wall params
        deltas.append(lmpt.ParamVertex(idx=idx, delta_y=params[num_params_outer + i]))

    # V-tip vertex (x-only shift), this is the last parameter
    deltas.append(lmpt.ParamVertex(idx=center_vertex_idx, delta_x=params[-1]))

    # Lower half, traversed in reverse as we need the first vertex in segment 7 to pair with the last vertex in segment 6, etc.
    # Symmetry enforced by making delta_y the negative of the same parameter
    for i, idx in enumerate(seg11_vertices):
        # Lower outer wall
        mirror_i = num_params_outer - 1 - i
        deltas.append(lmpt.ParamVertex(idx=idx, delta_y=-params[mirror_i]))
    for i, idx in enumerate(seg7_vertices):
        # Lower inner wall
        mirror_i = num_params_inner - 1 - i
        deltas.append(lmpt.ParamVertex(idx=idx, delta_y=-params[num_params_outer + mirror_i]))

    return deltas

Bounds: the outer wall has more room to bow outward (positive y) than to bow inward (negative y). The inner wall and V-tip have asymmetric ranges tuned for the typical splitter optimization landscape.

bounds = (
    [(-250e-9, 500e-9)] * num_params_outer + [(-400e-9, 200e-9)] * num_params_inner + [(-400e-9, 100e-9)]  # V-tip x-offset
)

Call the parametrization function to apply the symmetric parametrization

y_branch_curve.set_parametrization_function(
    func=symmetric_parametrization,
    n_params=num_params,
    bounds=bounds,
)

Check the geometry again after applying parametrization. The code will continue to run after this if the whole script is ran.

y_branch_curve.plot()
plt.pause(0.1)

Figure of merit

Define a broadband figure of merit: the target transmission to port_out1 is 0.5 (50% of the input power per output arm), averaged over the O-band sweep above. PNorm broadcasts the scalar target across all wavelengths automatically.

port_out = lmpt.PortResults("port_out1", metric="transmission", wavelengths=wavelengths)
y_branch_fom = lmpt.Fom(port_out, fct=lmpt.PNorm(p=2, target=0.5))

Optimization session setup

FDTD session

Create an FDTD session with visible UI

fdtd_session = lmpt.FdtdSession(show_fdtd_cad=True)

Project

Create the project (FOM is defined in y_branch_setup.py)

project = lmpt.Project(setup=generate_base_sim, parametrization=y_branch_curve, fom=y_branch_fom, fdtd_session=fdtd_session)

Uncomment and run the code below to validate that the parameter and project setup was done correctly

# params = project.parametrization.get_initial_params()
# lmpt.validate_gradient(project=project, params=params, perturbation=1e-9)

Optimizer

Use SciPy’s L-BFGS-B (gradient-based, supports bounds). The project’s adjoint gradient turns each iteration into one forward + one adjoint sim, which is the same per-iteration cost as a gradient-free method but with much better convergence per iteration in the smooth-FOM regime.

optimizer = lmpt.ScipyOptimizer(method="L-BFGS-B", max_iter=30)

Visualizer

Visualizer 1: FOM trace, gradient-norm trace, current geometry, and the real part of the Ey field so we can watch the splitter mode reshape during optimization.

visualizer = lmpt.GraphicalVisualizer(
    figsize=(12, 10),
    layout=(2, 2),  # Arrange panels in 2x2 grid
    panels=[
        lmpt.FomPanel(),
        lmpt.GradientNormPanel(),
        lmpt.GeometryPanel(),
        lmpt.MonitorPanel(
            monitor_name="FDTD::ports::port_out1",
            result_name="expansion for port monitor.T_out",
            operation="abs",
            title="|T_out| (matches FOM)",
            # Clamp the transmission trace to the physical
            # [0, 1] range so the plot stays comparable
            # iteration-to-iteration even when the
            # baseline transmission starts very low.
            # ``axes_kwargs`` is forwarded verbatim to
            # ``ax.set(**axes_kwargs)``.
            axes_kwargs={"ylim": (0.0, 1.0)},
        ),
    ],
)

Visualizer 2: Plot the y-direction electric field at the midplane monitor, for the midband wavelength.

visualizer2 = lmpt.GraphicalVisualizer(
    filename_prefix="field_plot_Ey",
    panels=[
        lmpt.MonitorPanel(monitor_name="field_monitor", result_name="E.Ey", operation="real", title="Ey field (real part)"),
    ],
)

Optimization session

Put everything together into an optimization session

optimization = lmpt.Optimization(
    project=project,
    optimizer=optimizer,
    callbacks=[lmpt.FileLogger(), visualizer, visualizer2],
)

Run optimization

result = optimization.run()

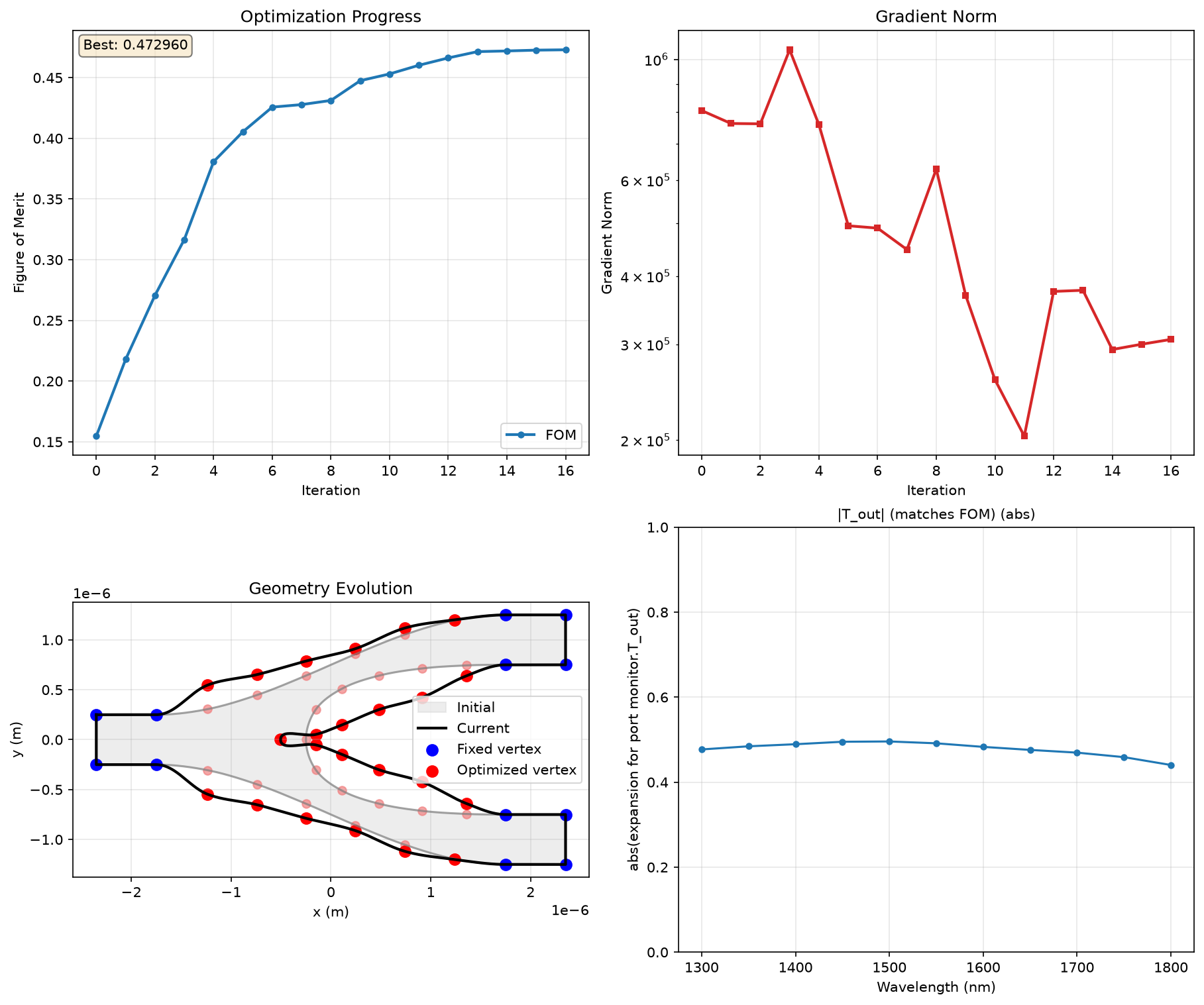

The final visualizer is shown below

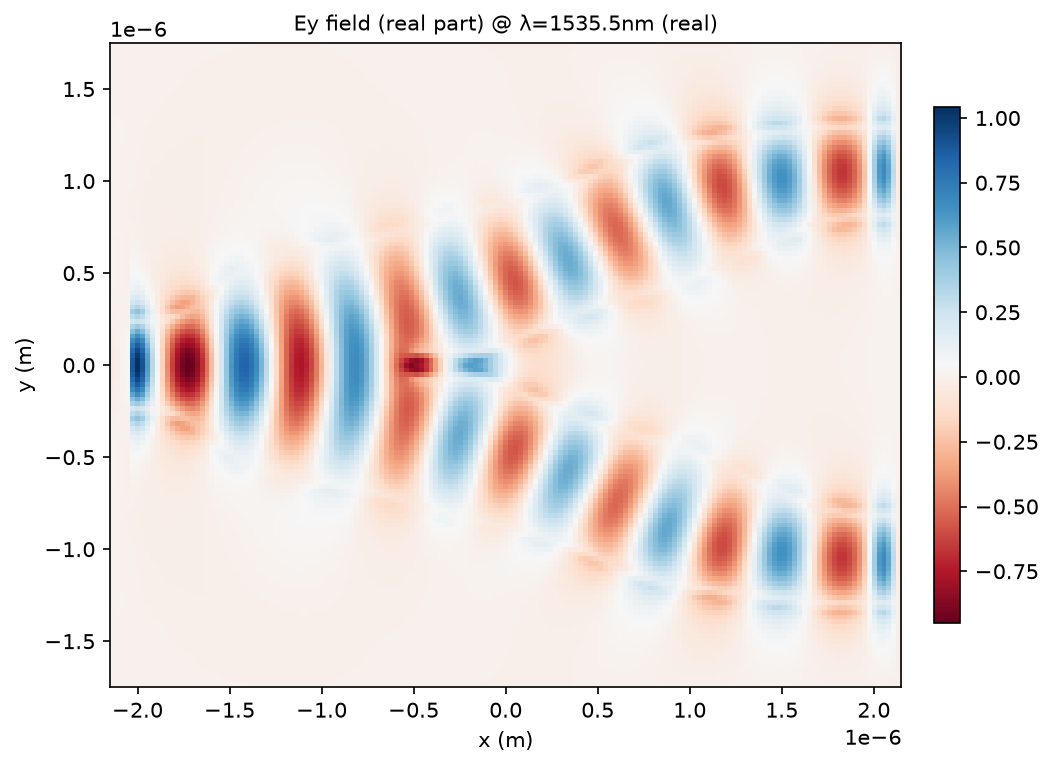

The final electric field is shown below

Save project

best_params, best_fom = result
project.save_project("y_branch_final.fsp", params=best_params)

Export as gds

project_dir = Path(project.fom.config_map.project_folder).resolve()

with lumapi.FDTD(project=str(project_dir / "y_branch_final.fsp"), hide=True) as fdtd:
    f = fdtd.gdsopen(str(project_dir / "y_branch_final.gds"))
    fdtd.gdsbegincell(f, "y_branch")
    # Material is set to the index as it was created as an "<Object defined dielectric>"
    fdtd.gdsaddstencil(f, "1:1", {"material": "3.5", "partialname": "optimization_polygon", "z": 0})
    fdtd.gdsendcell(f)
    fdtd.gdsclose(f)

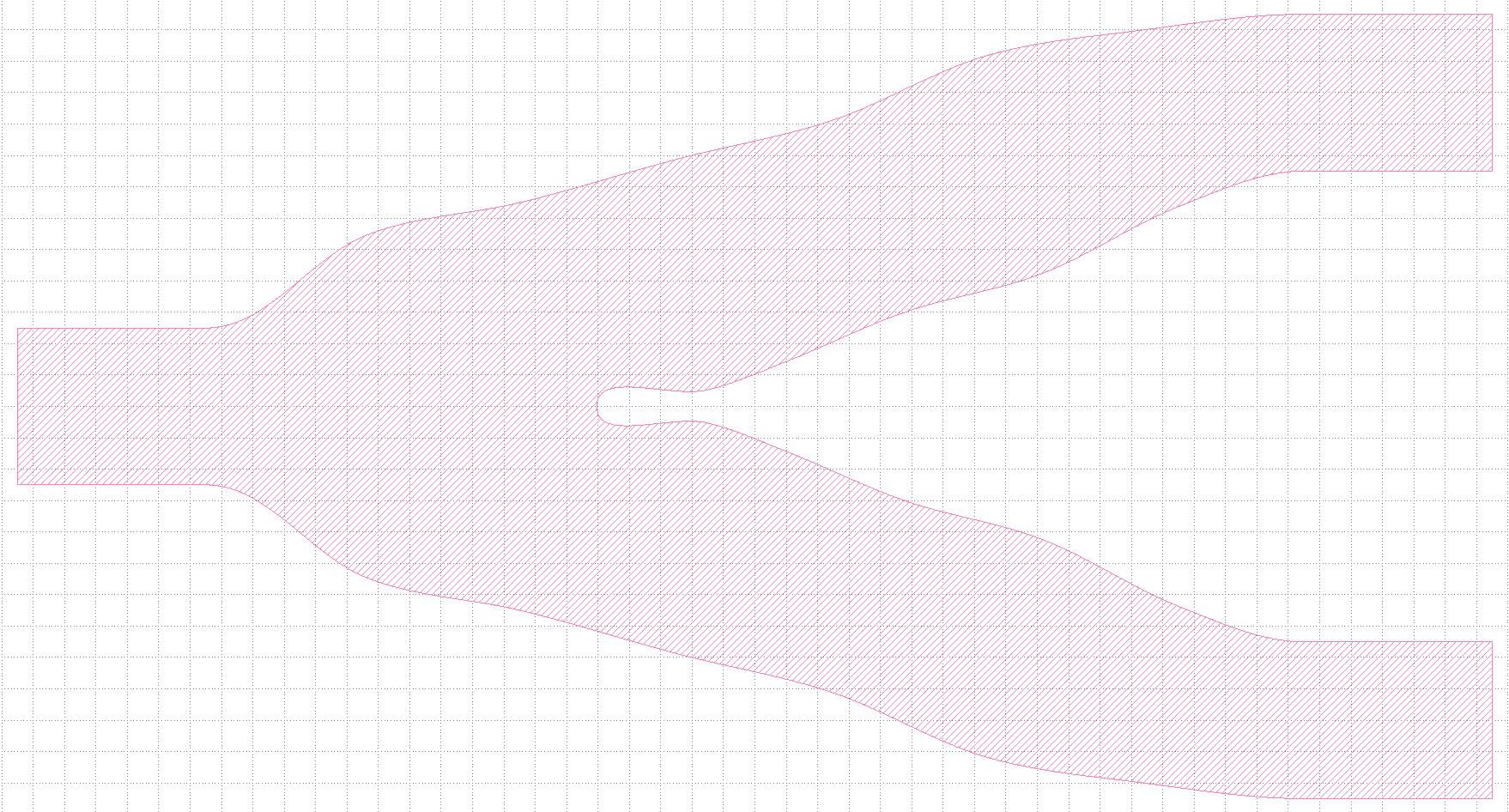

The exported GDSII file is shown below
